Hybrid wheelchair drive unit LIPO SMART TETRA

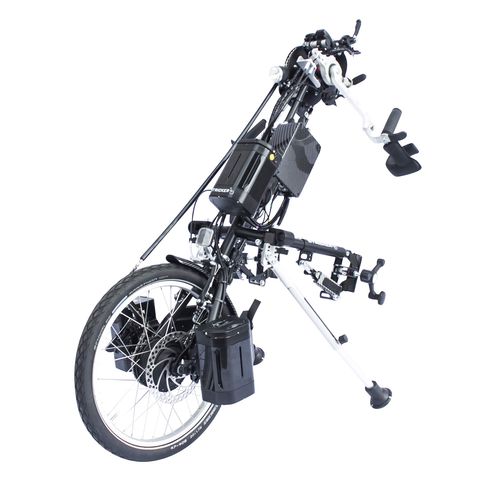

front

The Lipo Smart Tetra has the aim of restoring independence for people with quadriplegia. To achieve that, this special Hybrid Stricker Handbike has intelligent pedelec sensors that transform the handbike into an e-bike in no time. The sensor transmits the crank movement to the controller, which automatically switches on the battery and thus activates the engine. Additionally, you can set the speed of the assistance individually. Optional equipment Youth equipment 16 inch wheel Mountain engine Quick charger 2,35A Various tires, including off-road types Hydraulic disc brake Back pedal equipment Chain protection USB socket Adapter for wheelchairs with removable footrests Klickfix holder Luggage carrier, basket & pannier Rearview mirror Turn indicator system Carbon coating Specifications Type of drive - Wheel hub motor Wheel size - 16 or 20 inch Gear shift - SRAM 8 gear shifting and mountain drive (total 16 gears) Position gear shift and brake lever - Chin shift, backpedal brake with second brake lever for locking Engine - 250W, max. speed 25 km/h Battery - Lithium-Ion (36V / 14Ah / 504Wh) incl. charger Battery weight - 2,5kg Battery charging time - approx. 10,3h Battery charger - 36V, 1,35A Range - Up to 40 km on level ground Cranks - Bullhorn cranks Brake - Back pedal brake, V-Brake Chainring - 44 + 11-32 Weight (without battery) - 17.5 - 20.5 kg Display - Tachometer with speed display, distance travelled, driving time, max. speed, total kilometres and average speed Basic equipment - Marathon tyre 20 x 1.75 Teflon chain protection tube Kick stand LED lamp 36V Taillight Bicycle computer Bell Automatic catch Position clamps
