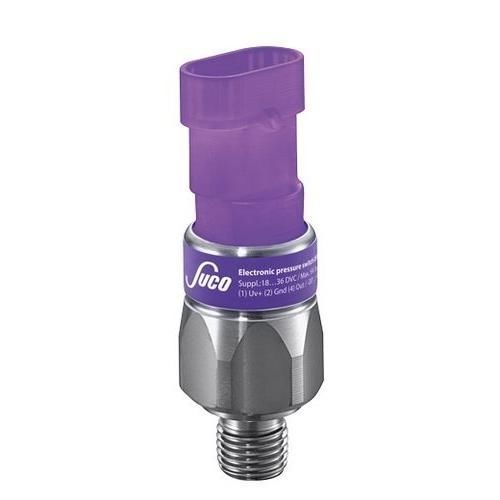

Pressure transmitter 0601

Hex 24 with ceramic sensor in thick film technology Very attractively priced electronic pressure transmitters High overpressure protection (up to 2 x) Small, compact transmitters Broad diversity of electronic and mechanical connection options High level of adaptability to your requirements (custom solutions) Ceramic sensor in thick film technology Housing made of stainless steel (1.4305), others on request Pressure transmitter 0601 - 0 - 10 V, 3-Leiter (Production) line / hex: Hex 24 Connection: NPT 1/4 G1/4 - DIN 3852-E Response time: < 2 ms Sealing material: NBR FKM EPDM Pressure type: Overpressure Housing material: stainless steel 1.4305 / AISI 303 Pressure range: 0 to 2 bar 0 to 4 bar 0 to 10 bar 0 to 16 bar 0 to 40 bar 0 to 100 bar 0 to 250 bar Burst pressure: 8 bar 20 bar 35 bar 60 bar 140 bar 300 bar
