- Piston pressure switch
- SUCO Robert Scheuffele GmbH & Co. KG

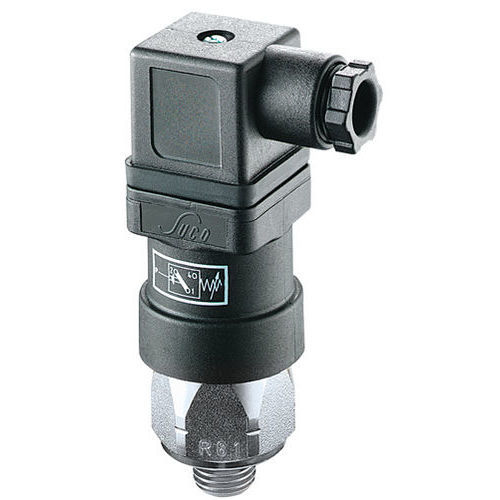

Piston pressure switch 0185medicaladjustablecompact
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Applications
- medical
- Other characteristics
- adjustable, compact, rugged, plug-in, IP67, IP6K9K
- Pressure range
Min.: 50 bar
(725.19 psi)Max.: 200 bar
(2,900.75 psi)
Description
Changeover switch with silver or gold contacts
Large selection of electrical plug-in types for quick attachment and reliable connection
Hysteresis adjustable at factory
High protection class (to IP67 or IP6K9K)
Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
Switching point can be set on site with adjusting screw
Very high overpressure safety
The corresponding mating plugs are available as accessories
Overpressure safety:
600 bar
Pressure type:
Overpressure
Adjustable switching point:
Yes
Hysteresis:
Adjustable value in average: 10 - 30 %, depending on type
Switch function:
Changeover
Electr. connection:
socket device
integrated:
Yes
IP Rating:
IP65
Contact rating:
250 VAC
Contact material:
Silver
Sealing material:
NBR
EPDM
FKM
HNBR
Housing material:
Zinc-plated steel (CrVl-free)
Connection:
7/16 - 20 UNF
9/16 - 18 UNF
G 1/4
M 10 x 1 - tapered
M 12 x 1,5 cylindrical
NPT 1/4
NPT 1/8
Additional functions:
none
