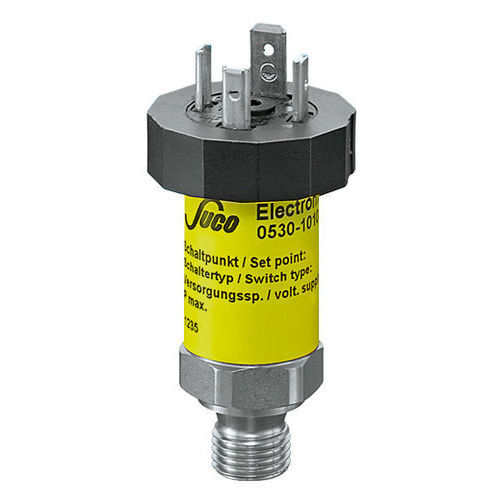

Electronic pressure switch 0531

medicaladjustablecompact

Hex 22 with one switching output Outstanding overpressure protection (up to 4 x) Ideal choice for mobile hydraulic applications Long service life even under high pressure change rates Wetted parts made of stainless steel and titanium ensuring excellent media compatibility All welded design, no elastomeric seal Silicon-on-sapphire technology (SoS) for highest reliability, accuracy and reliable process monitoring Very low temperature error and very good long-term stability Adjustment of switching point and hysteresis at factory Electr. connection: AMP Superseal 1.5 Bajonett Deutsch DT04-3P Deutsch DT04-4P socket device cable connection M12x1 IP Rating: IP65 IP67 IP67; IP6K9K Hysteresis: 0,2..99,8 % FS, hysteresis adjustable by factory Overpressure safety: 40 bar 100 bar Burst pressure: 80 bar 200 bar 800 bar 2000 bar Switch function: normally closed (NC) Housing material: stainless steel 1.4305 / AISI 303 Connection: 7/16 - 20 UNF 9/16 - 18 UNF G 1/4 G1/4 - DIN 3852-E M10 x 1 zyl. DIN 3852-A M14 x 1,5 - DIN 3852-E NPT 1/4 NPT 1/8 Sealing material: Welded Measuring cell: Titanium / SOS Additional functions: Display switching status with LED (only M12 connector) Type: 0531 - (Öffner) Catalogue chapter: E5
