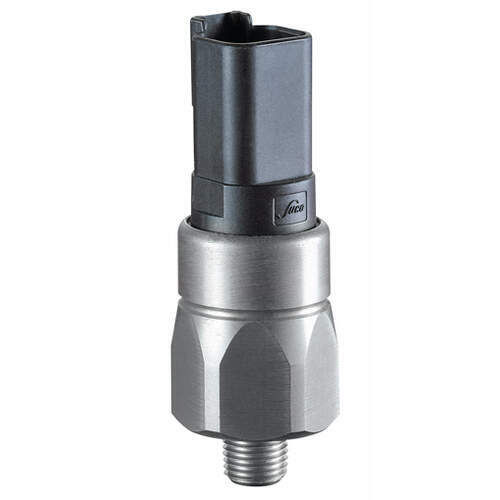

Diaphragm pressure switch 0110

medicaladjustablecompact

The all-rounder with the broad selection of options Large selection of electrical plug-in types for quick attachment and reliable connection High protection class (to IP67 or IP6K9K) Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles Switching point can be set on site with adjusting screw in the connector High overpressure resistance, compact, small switches, available as normally open or normally closed Overpressure safety: 300 bar Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Average value of 5 - 30 %, depending on type, not adjustable Switch function: normally closed (NC) Normally open (NO) Electr. connection: Deutsch DT04-2P integrated: Yes IP Rating: IP67; IP6K9K Contact rating: 42 VAC Contact material: Silver Sealing material: NBR EPDM FKM HNBR Housing material: Zinc-plated steel (CrVl-free) Connection: G 1/4 G 1/8 - cylindrical M 10 x 1 - tapered M 10 x 1 - cylindrical M 12 x 1,5 cylindrical NPT 1/8 Additional functions: none
