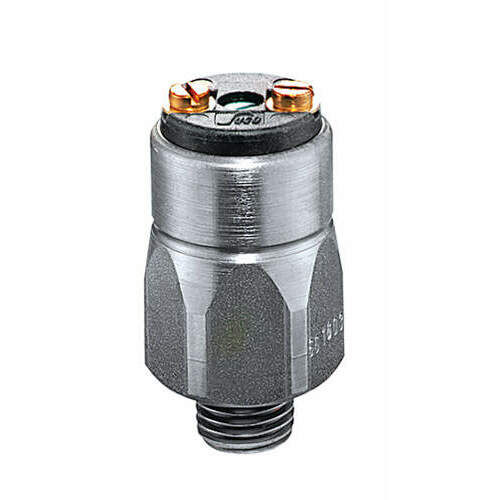

Diaphragm pressure switch 0164

medicaladjustablecompact

NC or NO, maximum voltage 42 V Most cost-effective solution for mechanical pressure monitoring Stable switching point even after long use and high load Switching point can be adjusted when fitted on site High pressure resistance, compact, small switches, available as normally closed (NC) or normally open (NO) Overpressure safety: 600 bar Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Average value of 5 - 30 %, depending on type, not adjustable Switch function: normally closed (NC) Normally open (NO) Electr. connection: screw terminal Spade terminal integrated: No IP Rating: IP65, terminals IP00 Contact rating: 42 VAC Contact material: Silver Sealing material: NBR EPDM EPDM-W270 FKM Silicone HNBR Housing material: stainless steel Connection: G1/4 - DIN 3852-E R 1/4 - tapered R 1/8 - tapered Additional functions: none
