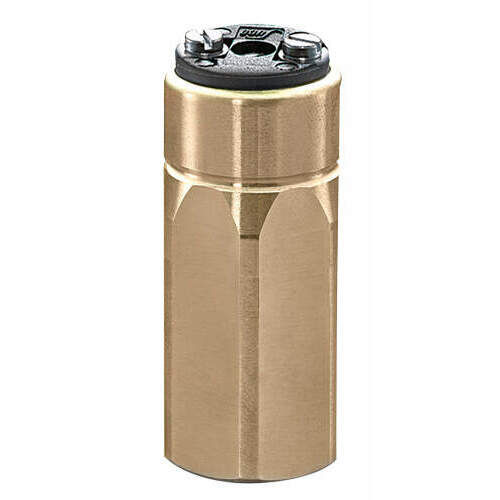

Medical pressure switch 0151adjustableIP65
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Other characteristics
- adjustable, IP65
- Pressure range
Max.: 950 mbar
(13.78 psi)Min.: 200 mbar
(2.9 psi)
Description
With high overpressure resistance
Switching point can be adjusted when fitted on site
Long service life even under harsh conditions
0150 series available as changeover contacts up to 250 V
0151 series available as NC or NO up to 42 V
Overpressure safety:
35 bar
Pressure type:
Vacuum
Adjustable switching point:
Yes
Hysteresis:
no specification
Switch function:
normally closed (NC)
Normally open (NO)
Electr. connection:
screw terminal
Spade terminal
integrated:
No
IP Rating:
IP65, terminals IP00
Contact rating:
42 VAC
Contact material:
Silver
Sealing material:
FKM
Housing material:
brass
Connection:
G 1/8 - internal thread
Additional functions:
none
