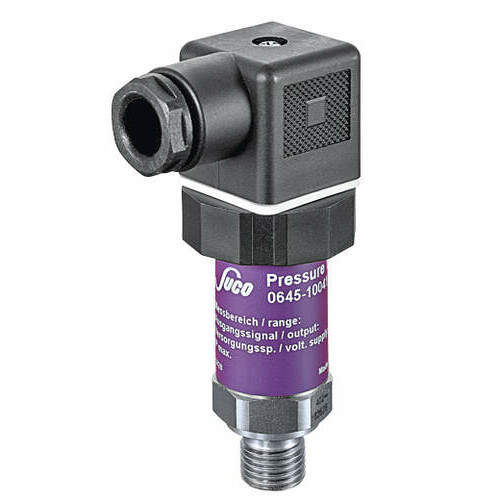

Pressure transmitter 0645

Stainless steel housing (1.4305 / AISI 303, hex 22) Pressure transmitters specially for low pressures, including vacuum applications High overpressure protection (up to 3 x) Long life time even under high pressure change rates Housing and wetted parts are made of stainless steel providing excellent media compatibility Suitable for hydrogen and oxygen applications The highly-sensitive piezo-resistive sensor in the measuring cell filled with oil guarantees high level of accuracy, repeatability and long-term stability The availability of different sealing materials enables deployment in a broad temperature range and with a diverse array of media Custom variants (e.g. cleaned for oxygen applications) are available on request Pressure transmitter 0645 - 0,5 - 4,5 V ratiometrisch Connection: G1/4 - DIN 3852-E Response time: < 2 ms Burst pressure: 40 bar 100 bar 250 bar 35 bar 30 bar 20 bar 10 bar Sealing material: NBR FKM Pressure type: Vacuum Overpressure Pressure range from: 5 VDC Housing material: stainless steel 1.4305 / AISI 303
