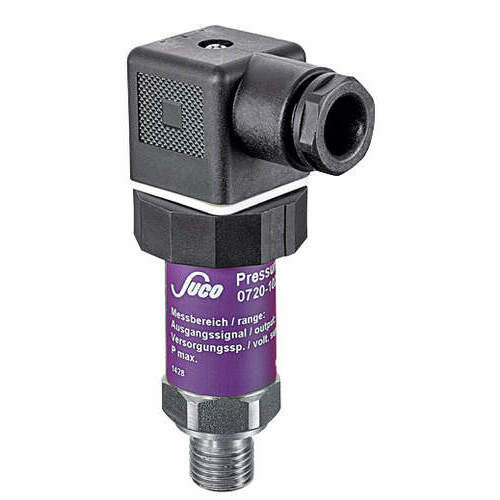

Pressure transmitter 0710

Pressure transmitters, high-Performance series, hex 22 Outstanding overpressure protection (up to 4 x) Ideal choice for mobile hydraulic applications Long service life even under high pressure change rates Wetted parts made of stainless steel and titanium ensuring excellent media compatibility All welded design, no elastomeric seal Silicon-on-sapphire technology (SoS) for highest reliability, accuracy and reliable process monitoring Very low temperature error and very good long-term stability Customer specific solutions available on request Pressure transmitter 0710 - 0 - 10 V (3-Leiter) Connection: NPT 1/8 NPT 1/4 G1/4 - DIN 3852-E G 1/4 9/16 - 18 UNF 7/16 - 20 UNF Response time: < 2 ms Burst pressure: 800 bar 2000 bar 80 bar 480 bar 320 bar 200 bar 1280 bar 128 bar to: 0 - 10 V Sealing material: Welded Pressure type: Overpressure Pressure range from: 12 - 32 VDC Housing material: stainless steel 1.4404 / AISI 316L
