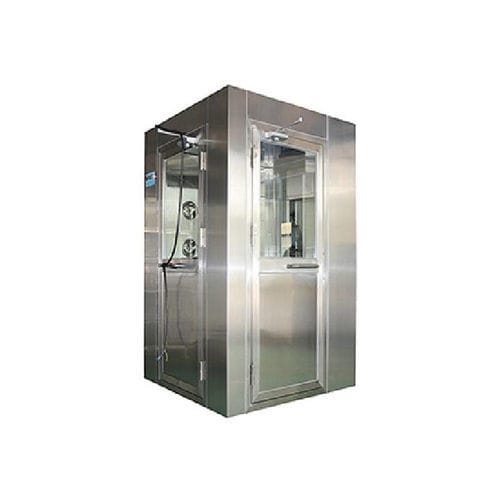

Clean room shower SJ-FLS-1A

air

◆ The air in the air shower room enters the static pressure box through the primary effect filter through the function of the fan. After being filtered by the high-efficiency air filter, the clean air is ejected from the nozzle of the steel plate baking paint air shower room at a high speed. The angle of the nozzle is adjustable, which can effectively blow off the dust attached to the surface of people or articles. The dust blown down is recycled and enters the primary effect air filter, so that the purpose of the air shower can be achieved . Technical parameters: Material selection 1.2mm high quality cold rolled steel plate baking paint, external steel plate baking paint internal stainless steel, SUS304 internal and external stainless steel (both doors and floors are SUS304 stainless steel) Applicable number 1 Air shower time 0-99s adjustable Number of nozzles 12 (bilateral) Nozzle diameter Φ30mm Wind speed > 25m/s Filter efficiency ≥ 99.995% (sodium flame method) dust particle size ≥ 0.3 μ Μ Control mode Color LCD, with electronic interlock, lighting delay, fault alarm prompt, screen lock function High efficiency filter size 600×600×120mm Efficient quantity 2 Outline size 1200W-1000D-2100H Internal dimensions 800W900D1950H Power Supply 380V, 50Hz (three-phase five wire power supply, three fire and one zero one ground, the wind shower room with 220V and 110V power supply can be customized according to the customer's requirements) Lighting lamps Led embedded lamp 1 Fan quantity 2 * 0.50kw/set Whole machine power 1.0Kw Weight (kg) 360kg
