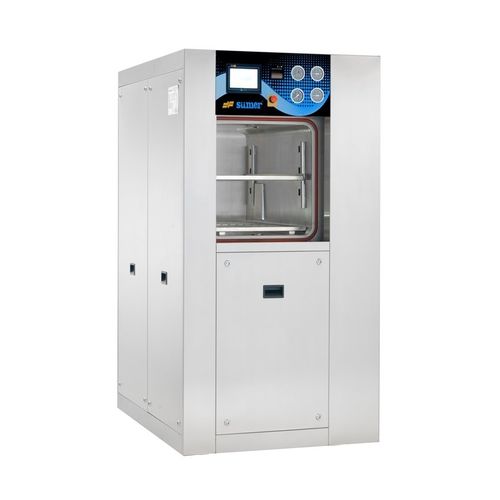

Medical sterilizer SM-2 KK 175laboratoryCSSDsteam
Add to favorites
Compare this product
Characteristics
- Applications
- medical, laboratory, CSSD
- Sterilization procedure
- steam
- Configuration
- floor-standing, front-loading, pass-through
- Function
- automatic, programmable, high-capacity, microprocessor-controlled
- Sterilization chamber material
- stainless steel
- Options
- with touchscreen, with sliding door, with dryer, with steam generator, with cooling system, with deionizer
- Capacity
175 l
(46.23 gal)- Temperature range
134 °C
(273.2 °F)- Sterilization cycle time
60 min
- Width
890 mm
(35 in)- Height
1,800 mm
(70.9 in)- Depth
1,300 mm
(51 in)
Description
Control System
PLC processor
Way of use
Full automatic / buttons and touch screen
Screen Type
Color TFT, Touch LCD
Screen Dimensions
7,0" (10,0" Optional)
Keypad
Touch Screen
Printer
40 Characters / lines, integrated thermal printer
TAKING OVER
Taking over the materials requiring sterilization
WASHING
Packaging the washed materials
PACKAGINC
Packaging the washed materials
STERILIZATION
Sterilization of packaged materials
STORAGE
Storage of sterilized materials till use
HANDINC OVER
Dispatching the stérile materials to relevant locations
DELIVERY
Delivery of materials with broken sterility to the CSU
Communication
RS232 /485 Port - USB (Ethernet Optional)
Warning system
Warnings with audiovisual and written messages
Data Storage
200 cycles
Procedure follow-up/tracing
Analog indicators for the follow-up of Cell, Jacket, Generator and Air pressure in addition to the Touch Screen
TAKING OVER
Taking over the materials requiring sterilization
WASHING
Packaging the washed materials
PACKAGINC
Packaging the washed materials
STERILIZATION
Sterilization of packaged materials
STORAGE
Storage of sterilized materials till use
HANDINC OVER
Dispatching the stérile materials to relevant locations
DELIVERY
Delivery of materials with broken sterility to the CSU
VIDEO
