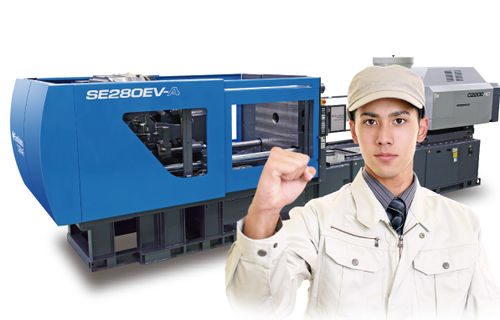

Horizontal injection molding machine SE-EV-A-HD

Stable molding at lower mold clamp force Zero-molding can reduce the mold clamp force without sacrificing precision and stability.The advantages are lower fraction defectives, less maintenance, longer mold life, and energy saving. "If we could only mount larger molds on a compact machine ..." "We could not use our molds on a compact machine even though we could lower the clamp force." Ample mold mounting capability and improved injection capacity The SE-EV-A-HD employs a number of technologies for mounting larger molds. Moreover, the mold strengthens injection performance to meet a broader range of product needs.　This model enables molding free from stresses upon molds and delivers a sound job in a compact body.　The SE-EV-A-HD guides production sites to innovation. Ample specs for mounting large molds Extended opening stroke, thickness range and ejector stroke The mold-opening stroke is 25 mm wider than conventional models and the mold thickness range can be extended　(100 mm*/200 mm*) from the original minimum value. The ejector stroke is 220 mm in all models,　which is the largest for machines in the same class. *Option. Only a 100 mm extension is available on some models. Wider tie bar space Tie bar spaces have increased by 8% in width and 15%* in length compared to conventional models. These are the largest in machines of the same class. The square type tie bars allow users to insert molds from the side. *Mean values of the SE-EV-A-HD models.
