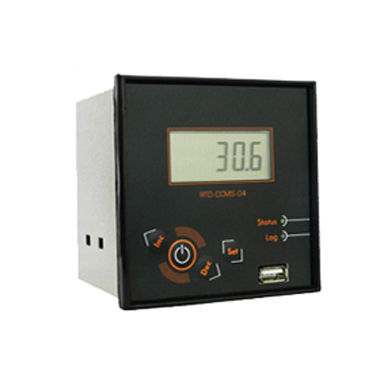

Temperature data-logger Smart Scan 01

for pharmaceutical productsfor blood banksUSB

This system is used for monitoring temperature of single point or monitoring temperature of items during transportation. The data is stored during the transportation and after reaching the station data is retrieved using USB over a PC Application Areas Cold Room Temperature Monitoring : Like blood banks, Pharmaceutical store rooms, Deep Freezer temperature monitoring, HVAC room temperature monitoring Cold Chain Monitoring Systems : Like temperature monitoring in Drugs, food, blood while in transportation Technical Specifications Input - PT100 / PT1000 / 4 – 20 mAmp / 0 – 5 VDC ( pre settable at factory ) Indication - 31 / 2 Digit LCD Display Data Storage - 60,000 Samples (Expandable to 120,000 Samples) Logging Interval - 1 Sec. to 1hour (User Selectable) Logging Types - Continuous / Value Triggered / Time based Real Time - Internal Real Time Clock with Battery Back Up Output - USB Port Alarm - Local Indicating alarms Operating Power - Internal rechargeable Li-Ion battery Operating Time - More than One month when fully Charged Battery Life - Approx. 4 Years
