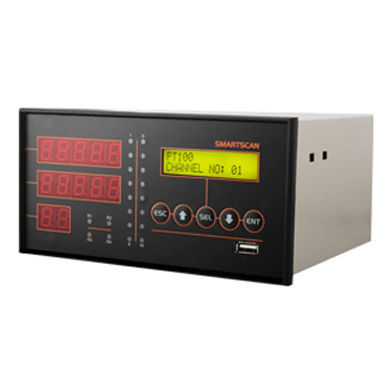

Universal data-logger Smart Scan 08 - 16

for blood banksUSB

SMARTSCAN is entry level Universal Input data monitoring and logging system. This product is Ideal for all the industries where multiple process parameters are to be monitored and tracked. Product comes with Bright LED display for clear visibility of Parameter value and Set point value. In addition 16 Character X 2 Line alpha numeric display with backlight is provided for easy man machine interface. To better suite you need product come with two different Size Orientation Vertical or Horizontal. Selection is also available between1, 4, 8 or 16 channels based on the needs. Serial output of over RS232 or RS 485 allows you to collect data on your desktop using out data logging software or communication can be established with PLC. Key Features 8 / 16 channel Universal Input Bright LED Display for Parameter Value, Set PointValue and Channel Number. Real time data - logging any Process Parameter. Sufficient internal memory for your local storage needs ~ 60,000 samples Serial RS232 or RS 485 Modbus RTU interface for PC / PLCcommunication ( Optional ) Flexible and selectable logging mode and logging interval. USB port for Easy Data retrieval. Potential free Relay output for Alarms. Intuitive Display - Bright red seven segment LED display for Parameter value (5 Digits), Set point Value (5 Digits) and channel number (2 Digits) and 16 character x 2 Line alphanumeric LCD display for indicating parameter units, alarms and easy system settings along with continuous display of Date & Time RTD Input - PT100 / PT100 Thermocouple Input - K, J, R, S type Input - 4 - 20 mA / 0 - 20 mA Input - 0 -2000 mVolt DC Input Voltage Input - 0 - 5 VDC Input / 0 - 10 VDC Input / 0 - 20 VDC input
