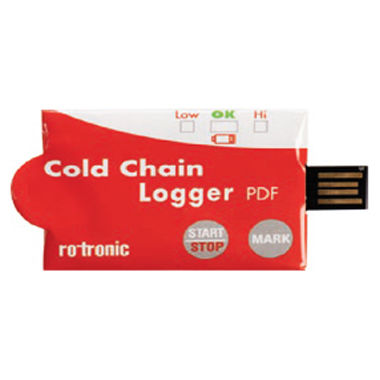

Temperature data-logger TL - CC1 - 10

humidityfor pharmaceutical productssingle use

Freely confi gurable by user - without software installation Clear alarm identifi cation Automatic PDF report generation Everything in one logger: confi guration fi le, PDF report, instruction manual and calibration certificate High storage capacity: 8,000 data point memory Manipulation - proof Conforms to GxP, EN 12830 and FDA 21 CFR Part 11 / GAMP 5 Application Monitoring of the cold chain during transport of sensitive freight such as pharmaceuticals, foods and technical products. The logger is designed for single use only. Technical Specifications Type of logger - Single use Temperature sensor - NTC thermistor Accuracy - ±0.5 °C (-30...70 °C) Resolution - 0.1 °C Range of application (humidity) - < 80 (3 / 0 R H Protection - IP65 (when placed in plastic bag) Weight - Approx. 10 g Battery - CR2032 (not replaceable) Dimensions without bag - 80(L) x 43(W) x 2.5(D) mm Dimensions with bag - 105(L) x 55(W) x 2.5(D) mm Logging interval - 0.5/5/10/30/60/90/120 min Start delay - 0.5/5/10/30/60/90/120 min Alarm type - Deactivated, single or cumulative Storage period - 12 months Storage capacity - 8192 data points MARK function - Marking of up to 8 points during transport Operation - START/STOP button, MARK button LED indicators - LED «Low» flashes red when value below alarm point LED «Hi» flashes red when value above alarm point LED <, OK» flashes green during data logging LED ((Battery» flashes red when low battery
