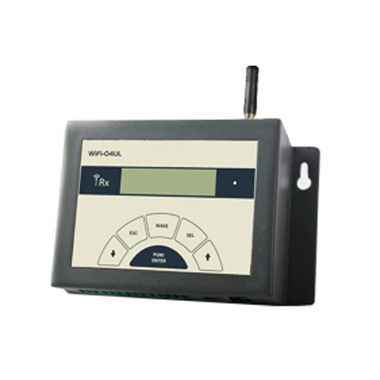

Temperature data-logger Wi-Fi-04-UL

humidityfor pharmaceutical productsfor blood banks

This system is used for multi-point data accumulation e.g. if there are multiple points where temperature & Humidity (or any two analog parameters) are to be monitored and recorded locally. The alarms will be generated locally. Such multiple instruments will be interfaced to a PC through a centralized receiver. Application Areas Blood Banks, Pharmaceutical store rooms, Deep Freezer Temperature Monitoring, HVAC room temperature monitoring, Plastic molding plants, applications where production / production parameters are need to be monitored centrally. Optional Features USB port for each data logger to download the stored data locally GSM ( SMS Facility ) in the receiver to report the alarming conditions to the concerned persons over SMS Technical Specifications Analog Inputs : - PT100 / PT100 / 4 – 20 mAmp / 0 – 5 VDC / Thermocouple (Type J / K / R / S) (Universal Input – User Settable) Excitation Voltage : - Excitation Voltage for sensors is generated through the data logger keeping the sensor alive on the internal battery in case of main power failure. Display : - 16 Character x 2 Line alphanumeric LCD Display A - D Converter : - 18 Bit Analog to Digital Converter Logging Interval : - 1 Sec. to 1hour ( User Selectable ) Logging Types : - Continuous / Value Triggered / Time based Data Storage : - 60,000 Samples (Expandable to 120,000 Samples) Data Retrieval : - Data Retrieval on a PC through Wireless receiver Real Time : - Internal Real Time Clock with Battery Back Up
