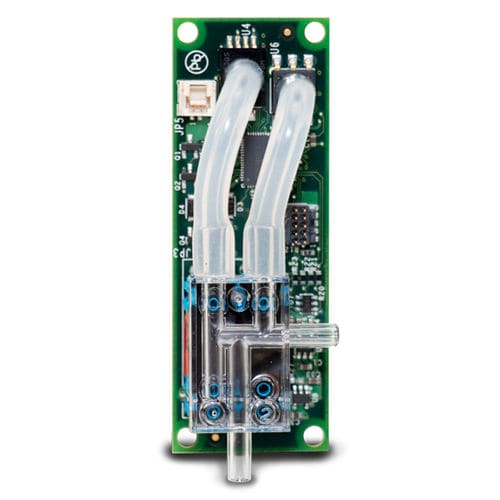

NIBP module for multi-parameter monitor Advantage MX Mini

pulse rateclinicalintegrated

The highest performance OEM module in the smallest complete valve onboard package available. The Advantage MX Mini is our newest hardware platform condensed to allow maximum design flexibility and space efficiency. Ultra-high Performance for the most challenging clinical applications Advantage RMT-Max (Maximum Performance R-wave Motion Tolerance) 3rd Edition and RoHS Compliant TTL Communication Protocol Smallest total package footprint with the convenience on on-board valves Physical Dimensions Width 1.0 in [25.4 mm] Length 2.75 in [69.9 mm] Height 0.72 in [18.3 mm] Weight 1.25 oz. [35.4 g] Measurement Technique Oscillometric NIBP Accuracy Meets ANSI/AAMI SP10, EN 1060-4, ISO 81060-2 Systolic Range Adult: 30-255 mmHg Neonatal: 30-135 mmHg Diastolic Range Adult: 15-220 mmHg Neonatal: 15-110 mmHg Pulse Rate Range Adult: 30-240 BPM (Beats per min) Neonatal: 40-240 BPM Pulse Rate Accuracy ±2% or ±3 BPM, whichever is greater Transducer Accuracy ± 3 mmHg over full range in operating conditions Operating Modes Manual Operating Conditions 0˚C to 55˚C, 15% to 90%, non-condensing humidity Storage Conditions -20˚C to +65˚C, up to 90% RH non-condensing Electrical Operating Voltage 5 VDC ± 5%, 6 VDC ± 5% Power Consumption Using 5 VDC Nominal Sleep: 50 mW Idle: 150 mW Measurement: 1.0 W Inflation: 3.6 W (High) Communication Protocols TTL (5V) Safety & Regulatory Standards IEC 60601-1, IEC/EN80601-2-30, EN60601-1-2:2007, ISO 81060-2:2009
