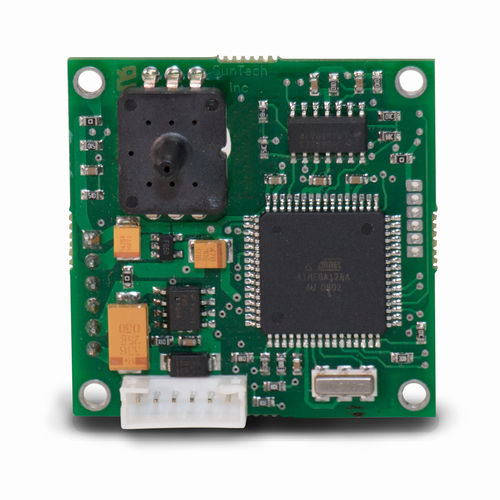

NIBP module for multi-parameter monitor Advantage Mini

pulse rateclinicalintegrated

Designed to be functionally equivalent to the 2.0, Mini provides all the features, control and performance customers expect, but in a compact package. With the freedom and flexibility to position the pump and valves elsewhere, Mini is the obvious choice for applications where space is limited. Technical Specifications Physical Dimensions Width 1.6 in [40.6 mm] Length 1.6 in [40.6 mm] Height 0.71 in [18.0 mm] Weight 0.2 lbs [88 g] Measurement Technique Oscillometric NIBP Accuracy Meets ANSI/AAMI SP10, EN 1060-4, ISO 81060-2 Systolic Range Adult 40-260 mmHg Pediatric: 40-160 mmHg Neonatal: 40-130 mmHg Diastolic Range Adult: 20-200 mmHg Pediatric: 20-120 mmHg Neonatal: 20-100 mmHg Pulse Rate Range 30-220 BPM (Beats per min) Pulse Rate Accuracy ±2% or ±3 BPM, whichever is greater Transducer Accuracy ± 3 mmHg over full range in operating conditions Operating Modes Manual Operating Conditions 0˚C to 50˚C, 15% to 95%, non-condensing humidity Storage Conditions -20˚C to +65˚C, up to 95% RH non-condensing Electrical Operating Voltage 5.3-14.5 VDC Power Consumption Using 6 VDC Nominal Sleep: 1.4 mW Idle: 204 mW Measurement: 1.1 W Inflation: 3.8 W Communication Protocols Serial RS232 or TTL (5V) Safety & Regulatory Standards IEC 60601-1 IEC/EN60601-2-30 AAMI SP10, EN1060-1 EN1060-3, EN1060-4, IEC 80601-2-30, ISO 81060-2
