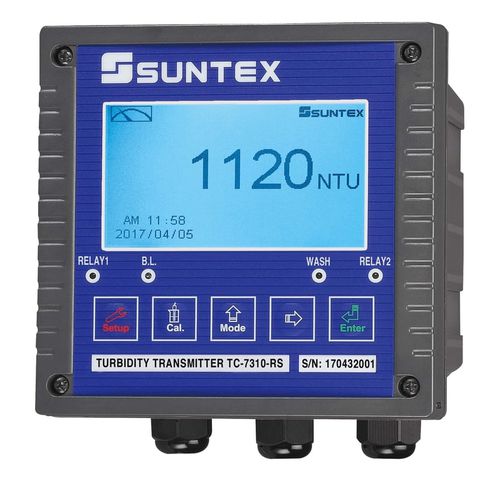

Turbidity sensor Online - TC-7310-RS

temperaturefor wastewater

The TC-7100-RS Turbidity / Suspended solids transmitter has rugged IP 65 enclosure and can be wall, panel, pipe mounted for installation in almost any industrial application. The TC-7100RS offers RS-485 interface to support digital communication to your PLC. The transmitter inherits our reliable technology which features in accurate, robust, and easy to use functions. Applications: • Wastewater treatment • Industrial process • Water treatment • Surface water Features: • Turbidity, Suspended solids, and Temperature measurement • 5 points calibration • IP 65 waterproof and dustproof design • Back-lit LCD with ON/OFF/Auto programmable illumination • Isolated current output DC 0/4~20mA corresponding to measurement • One RS-485 interface for digital communication • Two Hi/Lo Limited contact outputs ; Set points with programmable hysteresis function • Gradually continuous sample measurements average function to enhance stability • Wash function with programmable time-interval control • LED indication alarm or wash status signal • Password protection
