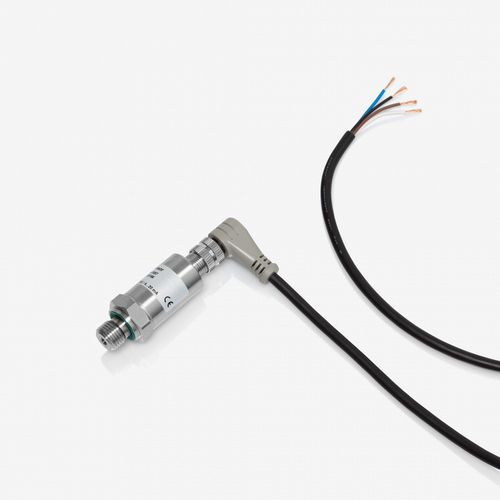

Pressure sensor S010

temperatureprocessmonitoring

Pressure is a key point in a compressed air system. This makes it crucial to keep the pressure at a constant and reliable level. Monitoring and measuring the compressed air pressure is needed to save energy, identify degrading systems at an early stage and keep production machinery running. SUTO pressure transmitters are made to seamlessly integrate into your compressed air monitoring systems and provide reliable measurement results for industrial applications. Signal Output The pressure sensor is offered as a 2-wire analog output version for easy connection. For modern monitoring solutions, the Modbus/RTU version allows to connect multiple sensors easily to a single data logger. Application Industrial equipment for manifold applications Hydraulic systems Pneumatic systems Industrial engines HVAC/R equipment Spraying systems Cooling systems Technical Data MEASUREMENT Pressure - Accuracy - ±0.5 % F.S (optional ±0.25 % F.S) Response time (t90) - ≤1 ms (@ 90 % F.S) SIGNAL INTERFACE & SUPPLY S010 Analog output (for 4 ... 20 mA type) - Signal - 4 ... 20 mA, (2-wire loop powered) Load - Max. 250 Ohm S011 Fieldbus (for Modbus/RTU type) - Protocol - Modbus/RTU BUS-Length - ≤ 1000 m Supply - Voltage supply - 11 ... 36 VDC Current consumption - Max. 20 mA Data interface - Connection - M12 Connector GENERAL DATA Material - Process connection - Stainless steel 1.4301 Housing - Stainless steel 1.4301 Metal parts - Stainless steel 1.4301 Miscellaneous - Electrical connection - M12 Connector Protection class - IP67 Approvals - CE Process connection - G1/4” (ISO 228/1) Operating conditions - Medium temperature - -40 ... +85 °C
