Pressure sensor S220 OEM

calibrationdew-pointmonitoring

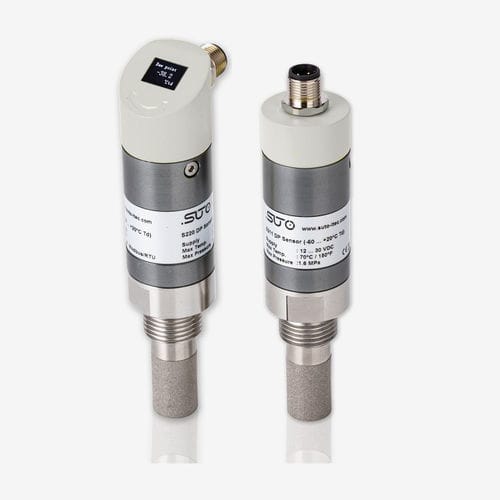

The SUTO S220 OEM Dew Point Sensor is a reliable dew point monitoring solution for OEM applications giving you long-term, stable monitoring. By providing a range of -100 … +20 °C Td, makes it an ideal choice for dew point measurements in high-tech conditions, according to the compressed air quality ISO 8573-1 Standard. Thanks to the reliable and long-term stable measurements, the S220 OEM reduces the maintenance cost by increasing time between calibration intervals. Plug and Play Dew Point Monitoring With this generation of the dew point sensors, SUTO is offering OEM customers a plug & play solution to monitor compressed air. Redesigned from ground up and integrating the latest technology and all our experience, the S220 OEM stands out from any competition. Unique Triple Sensor The combination of our highly engineered QCM sensor and the well-known Polymer sensor makes the S220 OEM the first dew point sensor model on the market to measure accurate over the whole range, from -100 °C Td up to +20 °C Td. By fitting an additional pressure sensor into the measurement device, SUTO is combining 3 sensor elements (Polymer, QCM, pressure) into one dew point transmitter. Various Output Connections The S220 OEM Dew Point Sensor is available with 2-wire or 3-wire analog 4… 20 mA output signals, in addition to that the models are available with a Modbus/RTU digital interface. Optional Display The optional OLED display directly mounted on the sensor provides on-site, real-time values. The display can be easily rotated by 340 ° to fit any application. The displays cover is made from robust Polycarbonate with ABS reinforcement to withstand harsh environments.
