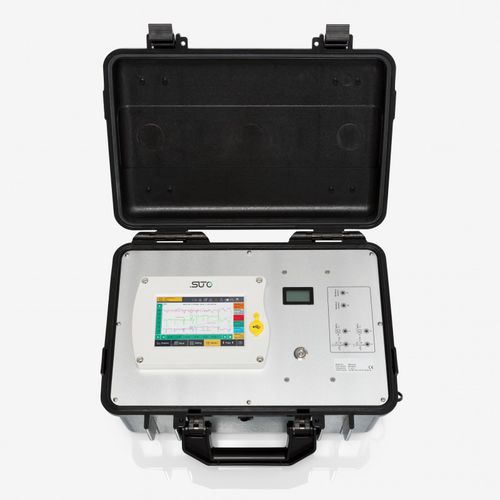

Dew-point data-logger S551

air flowwith touchscreen

The S551 Portable Data Logger for compressed air efficiency monitoring is the ideal data logger for energy analysis (ISO 50001) and air audits (ISO 11011) on site. On-site Logging The ultraportable and robust design helps to perform measurement tasks and audits on site. The high resolution 5” color touch screen interface makes the operation as simple as possible. To prevent data loss during power glitches and cuts, the backup battery ensures continuous data logging at the point-of-use. Plug & Play Solution The S551 Portable Data Logger is an easy to use and time-effective solution. With a few settings, the data logger is ready for operations with virtually unlimited memory size. No time-consuming configuration and programming are required. Just connect the sensor and start the recording. SUTO intelligent sensors are detected automatically on power-up. Versatile Connections and Sensor Inputs All sensors for required measurement tasks (air flow, air consumption, power consumption, pressure, temperature and many more) can be easily connected. The S551 provides up to 24 inputs through extension boxes and Modbus. Third-party sensors can also be connected in a few minutes. Optional 4G/LTE Remote Connection By integrating a USB port for 4G dongle connection outside S551casing, the portable data logger can be easily connected to the S4A Software and monitored remotely. This eliminates the need for a Wi-Fi connection. The USB 4G dongle is an optional feature. It can be ordered together with S551, but also upgraded later. To make use of this new feature, a SIM card is required.
