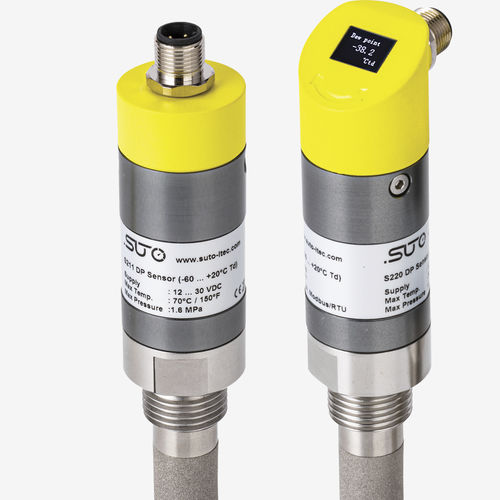

Dew-point sensor S220

temperaturepressurecalibration

The SUTO S220 Dew Point Sensor provides reliable and long-term stable dew point monitoring for compressed air and gases in industrial applications. The sensor has a range of -100 … +20 °C Td. This makes it an ideal choice for dew point measurements in high-tech industries and special conditions, where accordance to the compressed air quality ISO 8573-1 Standards is required. State-of-the-art Dew Point Monitoring The new generation of the SUTO dew point sensors have been redesigned from the ground up, offering compressed air users a plug & play solution to monitor their compressed air quality and purity. With the integrated pressure sensor, the S220 measures dew point, temperature and pressure in a single instrument. Minimization of calibration intervals Thanks to the reliable and long-term stable measurements, the S220 Dew Point Sensor reduces the maintenance cost to a minimum by increase calibration intervals. Unique Triple Sensor Our QCM sensor is the result of years of high-tech research and development. The sensor was especially designed for low dew point applications where other sensor types fail. The combination of QCM and the well-known Polymer sensor makes the S220 the world’s first model to measure accurate over the whole range, from -100 °C Td up to +20 °C Td by switching automatically between the two sensor elements as needed. By fitting an additional optional pressure sensor into the measurement unit, SUTO is combining 4 sensor elements (Polymer, QCM, Pt100, pressure) into a single dew point sensor.
