Three-axis micromanipulator TRIO™ MPC-145

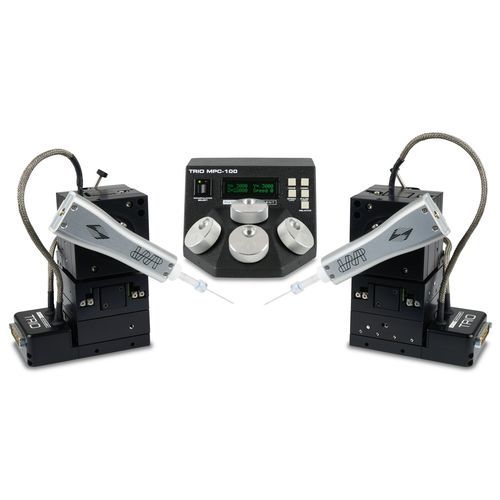

The new MP-845 micromanipulator features construction based on the lead screw design of the TRIO-245, but with the addition of precision cross-roller bearings for even tighter tolerances. A 25 pin connector insures future compatibility with our other controllers. Available in aluminum or stainless steel (see Stainless MP-845 tab above) the MP-845 is a highly stable 3-axis manipulator with 25 mm of travel on each axis. The TRIO MPC-100 controller gives the MP-845 a synthetic 4th axis that can be set in software to any angle between 0 and 90 degrees for diagonal movement. Based on a lead-screw design with a smaller overall size and footprint than most manipulators, the MP-845 is ideal for applications that require 2 pipettes in one setup or for setups where space is limited. The compact design of the integrated Rotary Optical Encoder (ROE) controller requires minimal bench space; provides quiet, fan-free operation; and is easy to use. No rack mounted controller is required. Position coordinates, in relative or absolute values, are displayed directly on the ROE. The TRIO MPC-100 uses a logarithmic acceleration algorithm that eliminates the need for speed selection. As the knobs on the ROE are turned faster, acceleration ramps up. This allows for smooth and intuitive motion control of electrode position without the need to stop and change speeds or lift your hand from the controller. When not moving, the motors are powered down, reducing electrical noise in the system to unmeasurable levels which keeps the motors cool to eliminate thermal drift.
