PH tester A–21.211.010

temperaturecalibrationflow

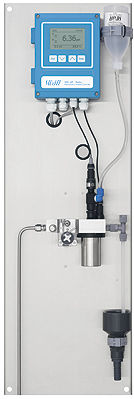

Monitor for continuous measurement of pH or redox (ORP) in high purity water, steam and condensate. Complete system mounted on stainless steel panel: Transmitter AMI pH-Redox in a rugged aluminum enclosure (IP 66). Measuring range: 1 to 13 pH respectively -500 to +1'500mV depending on installed sensor. Various combined or separated sensors with reference electrodes available. Flow cell QV-Flow IS1000 made of stainless steel with quick release vessel for easy calibration, needle valve, digital sample flow meter and temperature sensor. Factory tested, ready for installation and operation. Special features for high purity water with Nernst plus solution temperature compensation. Specifications Complete system mounted on stainless steel mounting panel. Transmitter in aluminum housing (IP 66) with 2 signal outputs for measuring value or for continuous control, 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact. Flow cell QV-Flow pHT1000 made of stainless steel SS316L with built-in temperature sensor, flow adjustment valve and digital sample flow meter for two PG13.5 sensors. Measuring range: - with Swansensor ST: 1.00 to 13.00 pH respectively -400 to +1’200 mV - with Swansensor SI/FL: 1.00 to 12.00 pH respectively -500 to +1'500 mV Process connections: - Inlet: Swagelok ¼" tube adapter - Outlet: G ½” adapter for flexible tube Ø 20 x 15 mm, pressure-free Power Supply -100-240 VAC (±10%) -10-36 VDC
