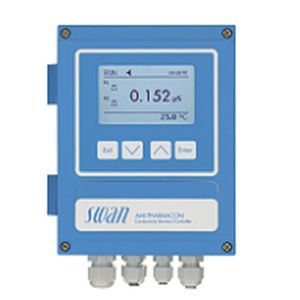

Conductivity transmitter A–13.640._00

for water analysis

An electronic transmitter for continuous measurement of conductivity in purified water and water for injection (WFI) of pharmaceutical waters. The transmitters can be mounted on the wall. The case is made of aluminium and its protection degree is conformed IP66 / NEMA 4X, which makes it robust and able to withstand any condition. Swan instruments are delivered as fully functional, ready-to-use instruments. This ensures easy system integration as well as user-friendly operation and maintainability. Each analyzer is thoroughly tested and factory calibrated prior to delivery. With its uniform menu navigation for simple operation and maintenance - one platform for all instruments. The self-explanatory maintenance procedures can be easily performed by the operating company. Specifications Conductivity measurement - for 2-electrode conductivity sensor including integrated Pt1000 temperature sensor, e.g. SS Pharmacon - Measuring range - 0.055 µS/cm to 2000 µS/cm Accuracy - 0.05 to 500 μS/cm ±2 %, 500 to 2000 μS/cm ±3 %, or ±0.001 μS/cm (whichever is greater) Temperature measurement (Pt1000) - Measuring range - -30 to 250°C Resolution - 0.1° C Sample flow measurement with digital sample flow meter. Power Supply - Voltage - 100-240 VAC (± 10%) 50/60 Hz (± 5%) or 10-36 VDC
