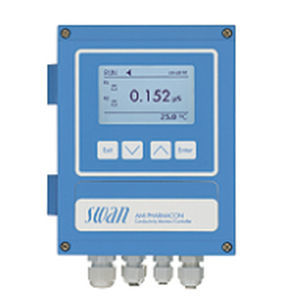

Conductivity transmitter AMU-II

for water analysis

An electronic transmitter for continuous measurements of conductivity of water for pharmaceutical purposes (purifed water, water for injection (WFI)). The size of the transmitter complies with DIN 43700 which allows it to be mounted in control panels easily. The transmitter case is produced from Noryl® resin and its front panel has a protection degree conformed IP54. Swan instruments are delivered as fully functional, ready-to-use instruments. This ensures easy system integration as well as user-friendly operation and maintainability. Each analyzer is thoroughly tested and factory calibrated prior to delivery. With its uniform menu navigation for simple operation and maintenance - one platform for all instruments. The self-explanatory maintenance procedures can be easily performed by the operating company. Specifications Measuring and control transmitter for panel installation in a Noryl® resin enclosure (front IP 54). Sensors: Connections for a two-electrode conductivity sensor with built-in Pt1000 temperature sensor like Swansensor Pharmacon and for a digital sample flow meter. Measuring range: 0.005 µS/cm to 2 mS/cm Simultaneous display of non-compensated and temperature compensated conductivity Alarm function for limit values according to USP Stage 1 and user-defined action limits User interface: Big backlit LC display for measuring value, sample temperature, sample flow and operating status Easy user menus in English, Chinese, German, French and Spanish. Simple programming of all parameters by keypad User management for controlled access to settings and other user menus Data logger for 3’500 data records stored at a selectable interval.
