Control analyzer A–24.6 series

temperaturecalibrationflow

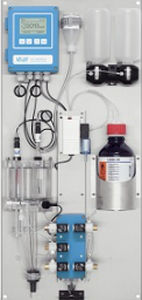

Analyzer for the continuous measurement of sodium ions in trace amounts in high purity water applications and steam generation. Complete Sodium analyzer panel-mounted for easy wall installation. Lowest available detection limit for sodium ion concentrations of 0.001 ppb. Programmable automatic calibration by multiple known standard addition at low levels. Programmable automatic regeneration of sodium electrode (pat.pending). Automatic control of sample pH conditioning. Automatic temperaure compensation. Continuous monitoring of reagent exhaustion, sample flow and sample temperature. Specifications Sodium measurement - Sodium glass electrode, screw cap. Calomel reference electrode, screw cap Measuring range - 0.001 ppb ... 10 ppm Accuracy - ±0.005 ppb or ±10 % of reading Reproducibility - ±0.001 ppb or ±5 % of reading Response time - 120 s (90%) Automatic- - 3 point calibration electrode regeneration temperature compensation pH monitoring and control Power supply Voltage - 100-240 VAC (±10%), 50/60Hz or 10-36 VDC Power consumption - max. 35 VA Sample conditions Flow rate - min. 100 ml/min. Temperature - 5 ... 45 °C (41 ... 113 °F) Inlet pressure - 0.3 ... 3 bar (4 ... 43 PSI) Outlet pressure - ambient pressure pH Value - ≥ pH 7.0 Ammonium concentration - < 10 ppm Acidity - < 50 ppm (CaCO3) Suspended solids - < 10 ppm, no oil, no grease
