Conductivity meter AMI Solicon4 AC

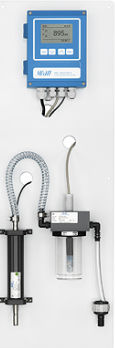

For monitoring conductivity in a wide range (0.1 microS/cm to 100 mS/cm) in potable water, effluent and cooling water. 4-Electrode platinum conductivity sensor with built-in temperature probe. Excellent stability and fouling resistance. Complete system mounted on PVC panel including: Transmitter AMI Solicon4 Flow cell M-Flow PG. Swansensor Shurecon P with integrated temperature sensor (Pt1000). Factory tested, ready for installation and operation. Optional accessory: Swansensor deltaT flow meter Specifications Conductivity measurement - with Swansensor Shurecon P including Pt1000 temperature sensor Measuring range - 0.10 µS/cm to 100 mS/cm Resolution - see datasheet Accuracy - +- 0.5% of measured value Temperature measurement - (Pt1000) Measuring range - -30 to 130°C Resolution - 0.1° C Power Supply - Voltage - 100-240 VAC (±10%), 50/60Hz or 10-36 VDC Sample conditions - Flow rate - 4 to 15 l/h Temperature - up to 50° C Inlet pressure - up to 1 bar Outlet pressure - pressure free Dimensions - Panel - 280 x 850 x 150 mm
