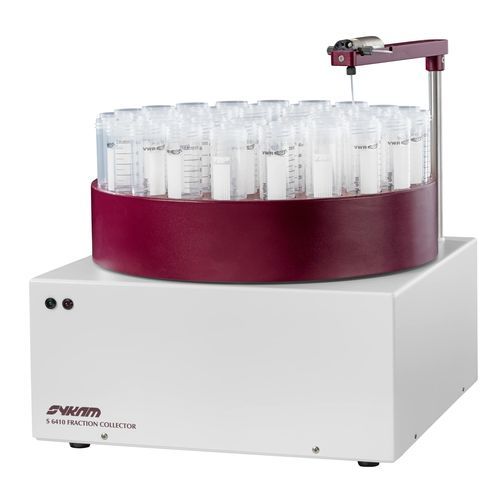

Chromatography fraction collector S 6410

The Sykam S 6410 Fraction Collector is an easy to use basic fraction collector for preparative LC/HPLC. A choice of 4 interchangeable tube racks and simple digital I/O and RS-232 control allow easy integration with virtually any preparative chromatography system. Technical Specifications Collector Rack 1 - 81 x 14 ml tubes (diameter 16mm) Collector Rack 2 - 45 x 50 ml tubes (diameter 30 mm) Collector Rack 3 - 9 x 250 ml bottles (diameter 71 mm) Other rack dimensions - Available on request RS232 - Collect/drain, init position, next position, previous position, goto position, error reporting Digital I/O - Collect/drain, init position, next position, previous position, error output Wetted materials - PEEK, PVDF Max. flowrate - 100 ml/min
