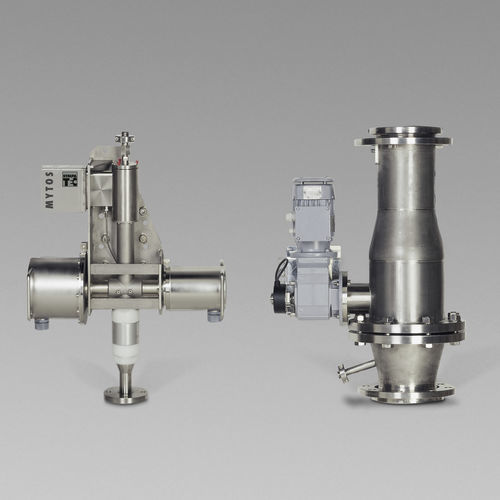

Laser diffraction particle size analyzer MYTOS

for powdersonline

MYTOS integrates the established core technologies of HELOS laser diffraction and RODOS dry dispersion in a single robust body: a process-proven laser diffraction sensor for dry powders ranging from 0.25 µm to 3,500 µm. In combination with continuously operating sampling system TWISTER a complete integration into the processing pipe is realised making it a true in-line solution delivering representative results. Alternatively, MYTOS may be operated on-line either with TWISTER, MIXER, SCREWSAMPLER, L-probes or existing sampling solutions. Integrated at-line operation in automated lab environments is succeeded with vibratory feeder VIBRI. For instance, typical applications comprise milling operations or spray granulation. The process-specific laser diffraction sensors find a wide range of applications from cement to pharmaceuticals, from roughest industrial conditions to GMP environments. If required, both systems may be configured for ATEX zones. Advantages: •Final product quality monitored via closed control loop system •Assrance of high batch-to-batch consistency •Greater insight into and control of manufacturing processes •Real time measurement of critical quality attributes in-process •Reduction of noncompliant batches and rejects •Long system service life with low maintenance requirements
