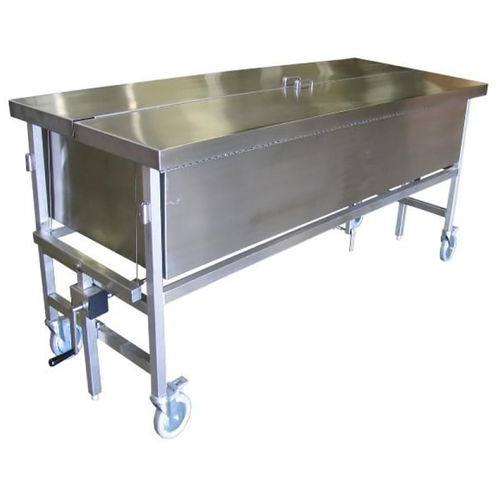

Work table 401881

rectangularon castersstainless steel

The SynDaver® Immersion Table is a custom storage and work platform designed to make using and caring for the SynDaver Synthetic Human easy and convenient. When the SynDaver model is not being used, it is kept fully submerged in the table’s built-in water chamber to ensure the integrity and longevity of the SynTissue®. When students are ready to interact with the model, a manual-crank lift mechanism raises the SynDaver Synthetic Human out of its water bath on the inner tray, which enables the retained water to drain into the storage chamber beneath. Description Overall Dimensions Length: 86 inches Width: 32 inches Height: 38 inches Chamber Dimensions Length: 80 inches Width: 27 inches Height: 15 inches Water Capacity 100 Gallons Shipping Weight 530 pounds Stainless steel Construction Specifications Heliarc welded seams and joints ground and polished to a smooth finish Stainless steel table top fabricated for strength and easy drainage Stainless steel hinged hood 6-inch casters, all with brake mechanisms .75-inch ball valve on drain for hose attachment 2-position manual-lifting mechanism; support rails lock inner tray in down position; added length for increased leverage when lifting Additional information Weight - 530 lbs Dimensions - 86 × 32 × 38 in
