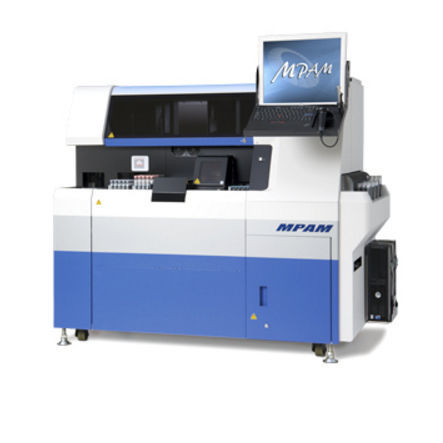

Tube decapper laboratory automation system MPAM+

tube sorting

MPAM+ enables high speed for "rapid testing", quality improvement for "quality assurance", and operation for "work improvement", and provides solutions to solve problems shared by many laboratories. Features: Decap: 570 samples/h, Aliquot: 540 samples/h(1:1 aliquot), Sort: 1000 samples/h Primary/ Secondary tube sorting function STAT sample priority handling Connectable to workcell (bridge type) Versatile connectivity to LAS Function Hi-speed decapping- Features speedy decapping function capable of handling 570 samples/h. Speedy aliquot by elegant motion crane- Rapid processing of 540 samples/h for 1:1(500µL) aliquot. Direct printing on secondary tubes- Sample info printed directly onto pre-labeled type secondary tubes. Eliminates label roll replacement and other hassles. Maximum of 28 offline sort destinations- Sorts and stores primary and secondary tubes based on subsequent processes. Automatic supply of controls- MPAM+ automatically sends QC specimen randomly into the line of measurement samples according to the preselected program. User can also select "Single control send" mode. Connectivity- With Workcell - With LAS and Workcell Specification Throughput Decapping - 570 samples/h Aliquotting - 540 samples/h (500µL aspiration, 1:1 aliquot) Aliquot accuracy - 200µL aliquot: CV 5%, 500µL aliquot: CV 3% Aliquot volume - Max. 800µL, Min. 200µL/aspiration Sorting - Over 1000 samples/h Sample tube Type - Rubber cap, Over cap, Screw cap Size - Diameter: Ø13mm, Ø16mm Length: 100mm, 75mm Secondary tube sample vol. capacity - Max. 5000µL No. of samples onboard Sample loading - Max. 200 samples (5 tubes x 40 racks)
