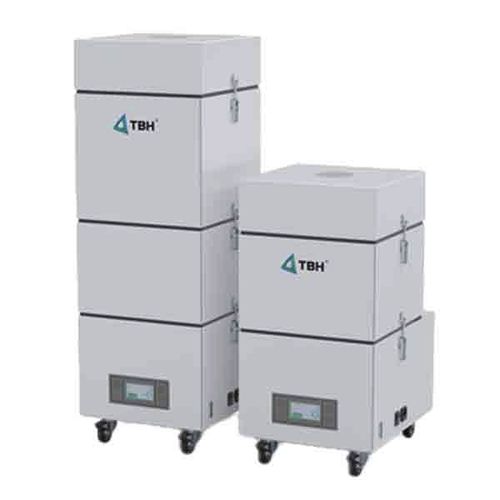

Air filtration system GL 230 series

bacteriologicalmicrofiltrationactivated carbon

The GL 230 is ideal for noise-sensitive environments such as laboratories and practice rooms. It is an environmentally friendly, energy-saving and quiet extraction system. Product variants Filter configuration: Pre-filter mat (F5), particle filter (H13), activated carbon Filter configuration: Pre-filter mat (F5), activated carbon Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13) Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13), activated carbon Technical data Air volume flow - max. 350 m³/h Effective air volume flow - 100 – 300 m³/h max. static pressure - 6000 Pa Voltage - 100-240 V Frequency - 50/60 Hz Engine power - 0.6 kW Sound level - approx. 53 db(A) Serial interface - 25-pin Sub-D
