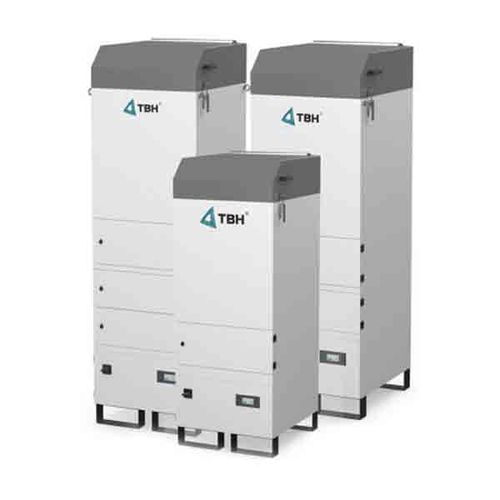

Air filtration system FP 211

for healthcare facilitiesfor the pharmaceutical industrymodular

The FP 200 series, specially developed for the pharmaceutical industry, is characterized by efficient dedusting and a patented, contamination-free filter change. This system removes dust from filter cartridges using compressed air blasts and guarantees long-lasting filter performance with minimal maintenance. These units are ideal for removing large quantities of dry dust and, thanks to advanced filter technology, offer a longer service life than traditional units, increasing productivity and reducing operating costs. The FP 211, with a 3.0 kW motor, is available in different versions: Basic model: with anti-static dust class M filter cartridge for standard applications. Extended filter surface: Including particle filter H14 for finer dust filtration. With activated carbon filter: For additional absorption of odors and gases. The FP 200 series offers a reliable dust extraction solution in the pharmaceutical industry, focused on safety, efficiency and economy. Technical data of the FP211: Air volume flow: 2000 m³/h Effective air volume flow: 300-1500 m³/h Max. static pressure: 5500 Pa Voltage: 400 V (3P+N) Frequency: 50/60 Hz Motor power: 3 kW Sound level: approx. 68 db(A) Drive type: Brushless motor Serial interface: 25-pin Sub-D
