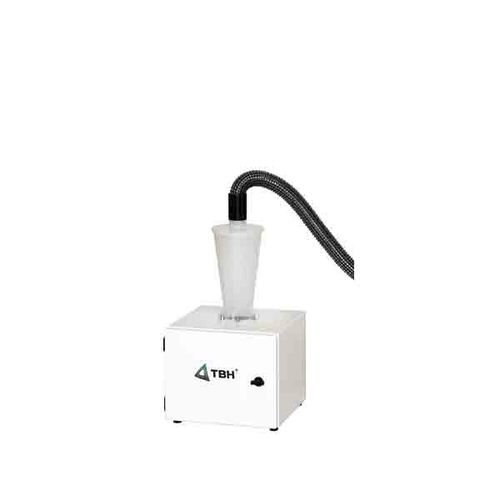

Dental laboratory suction system CN 10

dust

Cyclone pre-separators are efficient pre-separation devices for processes in dental laboratories that are characterized by high levels of dust. They are ideal for use in combination with a specially dimensioned filter and extraction system from the TBH LN 200 series. In these pre-separators, the air is set in a rotating motion, which effectively pushes the dust particles out of the air flow and separates them. With a separation efficiency of around 80% at particle sizes of 10 micrometers, the cyclone pre-separator makes a significant contribution to reducing the load on the downstream filter systems. This not only increases the efficiency of the extraction system, but also significantly improves its maintenance requirements and service life. Our TBH cyclone pre-separators are available in two versions: CN 10: TECHNICAL DATA:2000N 3000 CN 00 Material (cyclone) - plastic Air flow max. m³/h 250 Diameter mm 155 164 Inlet connection (left) mm 50 Outlet connection (top) mm 50 Dust collection container l 15 Footprint mm x mm 250x250 350x380 CN 20: TECHNICAL DATA: Material (cyclone) - plastic Air flow max. m³/h 250 Diameter mm 164 Inlet connection (left) mm 50 Outlet connection (top) mm 50 Dust collection container l 15 Footprint mm x mm 350x380
