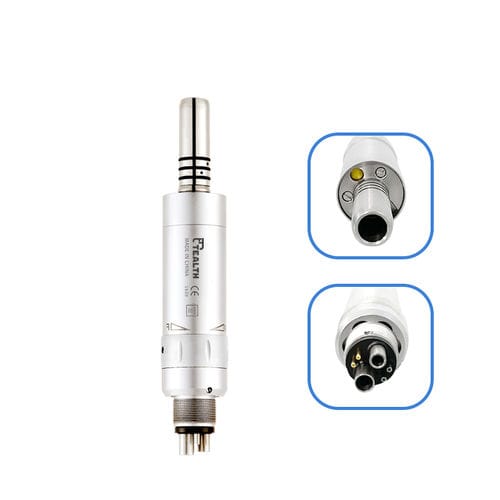

Dental micromotor MIF-01C

airdirectstainless steel

Tealth fiber optic air motor 6 holes dental handpiece, with stable light source, quiet and with low noise . Low vibration, long service life. Connector: ISO strandard 6 holes, E-type Separated air tube & water pipe, perfect cooling system. Fiber optic air motor Features: 1. Superior FKM material O ring,better autoclave sterilization 2. Exterior channel water spray systerm 3. Exquistie electroplate appearance 4. Forward and reverse options [Handpiece inserting & removal] Inserting Insert the E-type handpiece onto the motor and turning all the way until it click to stop. Removal Grip both handpiece and motor respectively, pulling and separating. [Forward/Reverse Rotation] 1) Forward Rotation: Turn the FWD/REV change ring to“F”. 2) Reverse Rotation: Turn the FWD/REV change ring to “R”. 3) When the FWD/REV change ring is positioned in the middle of “F” and “R”, the drive air is interrupted and the motor does not rotate. 4) When FEW/REV change ring is positioned in F or R, the rotation speed is maximum. [Maintenance & Care] After each treatment, sterilizing handpiece in autoclave according to the following steps: 1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution. 2. Lubricate handpiece. 3. Package into autoclaving pouch. 4. Autoclave the handpiece for 12 min at 135℃. 5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components 6. Do not use an ultrasonic cleaner to clean the dental handpiece.
