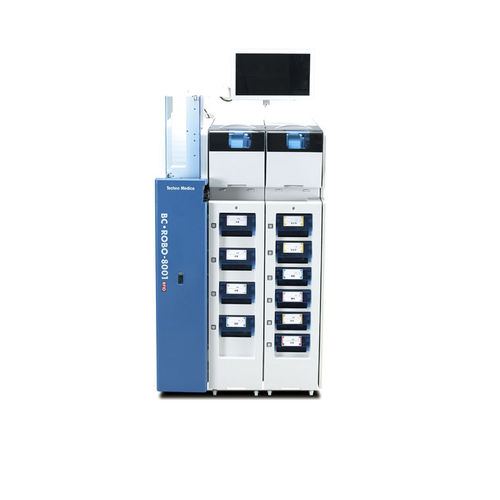

Laboratory tube labeling system BC・ROBO-8001RFID

pharmaceutical industryautomatichigh-speed

BC ROBO automates selecting and labeling collection tubes and produces all-in-one patient kit (labeled tubes, extra label and work list) according to test request. It helps to eliminate errors in the pre-analytical phase and helps to reduce patient waiting time. Feature ●Touch panel display, Label auto-loading function and Tube verification function realize safety, ease and accuracy. ●Modular concept with 4-30 tube type (5 modules in maximum) meets a variety of needs. Tailor made system selectable depending on customer’s operating environment and usage. ●The system ejects errored tube and creates completed patient kit automatically in case error occurred during tube preparation. The function minimizes the waste of labels and tubes. Spec Item - Specification/Feature Available tube - Diameter 12-18mm Length 75-113mm Plastic,Rubber,Film and none closure tubes Throughput - 12 sec/patient when processing 4 tubes (300patient/hour) Number of drawer - 4 up to 30 kinds of tubes Drawer capacity - Maximum 100 tubes for big drawer 35-50 tubes for small drawer (depends on tube size) Tray output capacity - 4 trays for horizontal output(depends on options) 20 trays for tray stacker Number of empty trays - 20 empty trays on standby(depends on options) Number of printer - 2 up to 6 printers Printing method - Direct thermal or Thermal transfer Printing - Alpha numeric,barcode,Rotate(90,180,270 degree) Black & White inversion, Line and box drawing PC - Touch panel Available barcode - Code 39, JAN, Code 128A/B/C, 2of 5, NW7(Codabar) etc. Options - ●Moduler ●Bag insert unit ●ABCT(Automatic Blood Collecting Table) ●RFID printer
