Radiography system Amadeo S

digitalfor multipurpose radiographywithout table

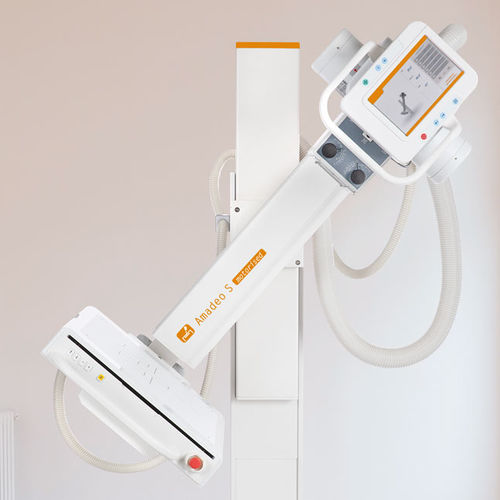

Motorised digital U-arm X-ray system for all applications in diagnostic radiography The Amadeo S motorised is a motorised U-arm X-ray system for the production of all diagnostic projection radiography images. Both its compact design and the minimum ceiling height of only 2.40 m make the system perfectly suited for small rooms. It includes all necessary components and functions for digital X-ray without cassettes: motorised U-arm system, generator, X-ray detector, PC and the dicomPACS®DX-R acquisition and diagnostic software. The very flexible and partially motorised positioning of the stand allows a wide range of images to be acquired. These can be taken on sitting, standing or lying patients (table optional). All important settings and operating operations are performed via an integrated 10" touchscreen display console. Both bucky tray and tube can be rotated and thus allow very variable X-ray settings. All necessary device positions can be pre-defined on the 60 available program slots to ensure quick positioning on the patient. The high-resolution, digital CsI X-ray detector and the removable grid ensure best image quality for all images. Intelligent collision sensors ensure patient protection by interrupting the movement in case of possible patient contact or contact with objects in the X-ray room. Features such as stitching to create whole leg and whole spine images, child filters etc. complete the advantages of this system. The Amadeo S motorised is controlled by our powerful X-ray acquisition software dicomPACS®DX-R. The software enables a very simple and intuitive operation and the automatic setting of all necessary parameters.
