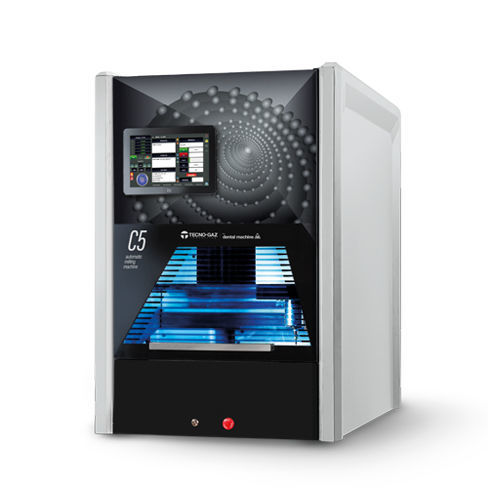

CAD/CAM milling machine C5

dentalfor dental laboratoriesfor dental wax

C5 is the medium level milling machine form Tecno-Gaz developed for dental laboratories or dental clinics wanting to take maximum advantage of CAD/CAM technology and obtain a high ROI. Simple to use, numerically controlled worktop milling machine with 5-axis continuous interpolation. Movements on 2 rotation axes Movement on 3 Cartesian axes Implant surgery 16 tools with automatic tool changer Jäger spindle with maximum power: 1 kW at 60,000 rpm Dimensions: 66 x 100 x 100 cm - 220 Kg Prosthetic products which can be made with C5 Crowns, bridges, hybrid abutments, models, attachments, veneers, etc. Materials usable with C5 All the pre-sintered metals + soft materials and silicates, as well as thermoplastic materials can be milled. Wax, PMMA, different resins, composite, pre-sintered zirconium dioxide and aluminium oxide, etc. Jäger spindle German market leading manufacturer: quality guarantee, performances and durability for optimal milling both at low speed (e.g. alloys, Cr-Co and titanium), and at high speed (e.g. ceramics). Wet cooling with external unit supplied. 5-axis CNC on every model In modern implantology, which requires implant placement at an optimal position and angle, milling can only be carried out on 5 axes. A segment (representing an implant) is defined in space by the 3 Cartesian coordinates, plus 2 inclination axes. The 5 axes are also useful in traditional production, since they allow the prosthetic element to be positioned in the blank at an optimal angle, thus minimising the required thickness. Result: higher speed and lower consumption of materials and tools.
