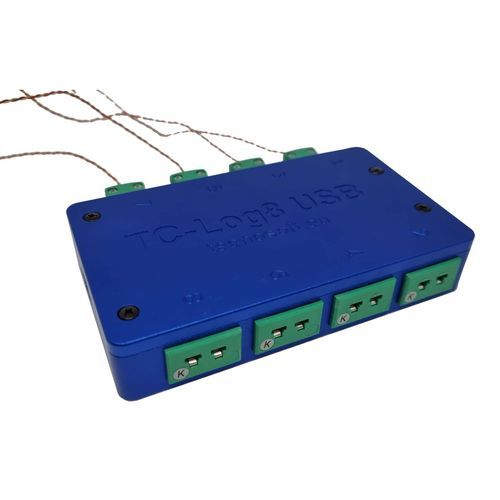

Temperature data-logger TC-Log K

laboratoryfor pharmaceutical productsfor temperature-sensitive products

Temperature data loggers for thermocouples up to 8 channels, resistant up to 130°C, with miniature connectors for K type thermocouples. User replaceable battery. Does not need of any connection bay, it has a direct USB connection. Thermocouples not included. Main features High temperatures resistant Quick response time USB direct connection to PC Reduced size Real time monitoring if connected to a PC via the USB interface User calibrable Plus Easy to use You can use your own thermocouples and calibrate it with them Real time Dimensions - 132 h X 80 X 25 (mm) Weight - 190 g Materials - Alumide, ABS Temperature accuracy - For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at -40/25/125°C) Temperature accuracy - For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at room temperature) Temperature accuracy - For logger only, sensors excluded: +/- 0,5°C range 0°C ÷ 75°C; +/-1°C range -40°C ÷ 0°C and 75°C ÷ 125°C without calibration Stability time - Internal stability after a 50°C shock: 20 minutes Memory (n. of acquisitions) - 104.855 with only 1 channel, 16.383 with all 8 channels (for complete information check proper document) Acquisition step - From 1 every second up, with 1 second steps Battery life - +4.320.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures) Battery life - Infinite time at 1 second step continuously when connected to USB port, real time (calculated time @25°C. Battery life may be shorter if used in low temperatures) Battery type - AA 3.6V lithium 2Ah
