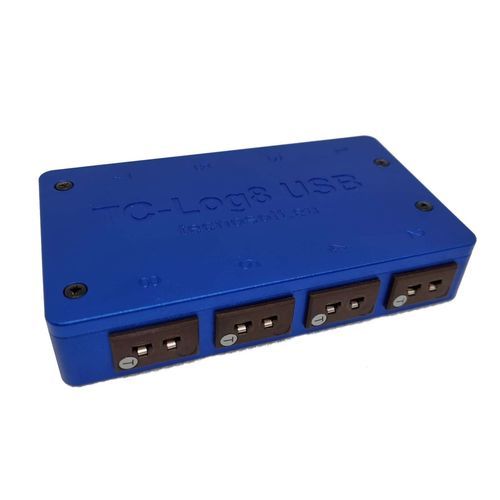

Temperature data-logger TC-Log T

laboratoryfor pharmaceutical productsfor temperature traceability

Temperature data logging device up to 8 T type thermocouples connectable with miniature connectors, resistant up to 130°C. User replaceable battery. No need of any extra device for PC communication, direct USB connection. Thermocouples not included. Main features High temperatures resistant Quick response time USB direct connection to PC Reduced size Real time monitoring if connected to a PC via the USB interface User calibrable Plus Easy to use You can use your own thermocouples and calibrate it with them Real time Dimensions - 132 h X 80 X 25 (mm) Weight - 190 g Materials - Alumide, ABS Number of channels - 8 Mounted connectors - T Available thermocouples - T Temperature resolution - 0,15 °C Temperature accuracy - For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at -40/25/125°C) Temperature accuracy - For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at room temperature) Temperature accuracy - For logger only, sensors excluded: +/- 0,5°C range 0°C ÷ 75°C; +/-1°C range -40°C ÷ 0°C and 75°C ÷ 130°C without calibration Stability time - Internal stability after a 50°C shock: 20 minutes Memory (n. of acquisitions) - 104.855 with only 1 channel, 16.383 with all 8 channels (for complete information check proper document) Acquisition step - From 1 every second up, with 1 second steps Battery life - +4.320.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures) Battery type - AA 3.6V lithium 2Ah
