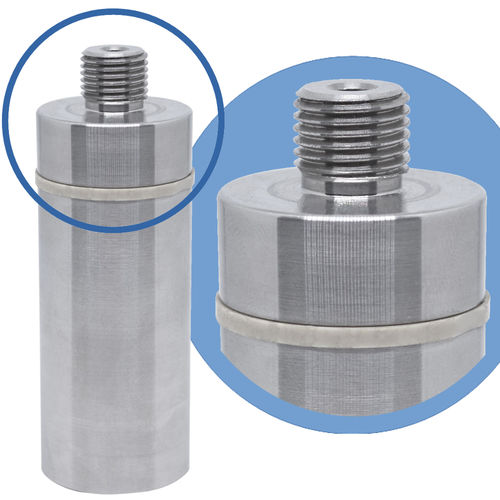

Temperature data-logger Pirani thread

pressurelaboratoryfor pharmaceutical products

A pressure data logger for plasma (hydrogen peroxide) autoclaves and very ow temperature and extreme vacuum freeze drying processes with veym high features. This is the version with a ½ Gass thread for external mount on autoclaves. Two combined sensors, one for extreme vacuum and one for higher pressures, up to 1200 bar allow to obtain an incredible accuracy of ±0.0003 and a resolution of 0,0001 mbar. The software is Windows based and communicates by means of a USB interface (DiskInterface HS). Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable certificate on different points. Main features Available in two versions: standard and with ½ Gass threaded connector Temperature channel with internal sensor for testing Low battery consumption for an extended battery life User replaceable battery (software shows battery status) Reference traceable calibration certificate included Available extended calibration from -60°C (order extra calibration points) Plus Extremely high accuracy and precision in extreme vacuum Easy to use Battery with extremely extended life Printed reports compliant with health regulations and ISO (data are not editable in the software) The system The system is made up by: Pirani Vacuum Logger pressure data logger DiskInterface HS TS Manager or HumiPressureDisk software Dimensions - 84 h X 30 Ø (mm) - 31 Ø (mm) PEEK ring Weight - 160 g Materials - Stainless steel AISI316L, PEEK Standard calibration points (temperature) - 0/25/50/75°C Pressure range - 0,001 mbar ÷ 1200 mbar absolute
