Pressure data-logger PressureDisk 05

laboratoryfor pharmaceutical productssterilization

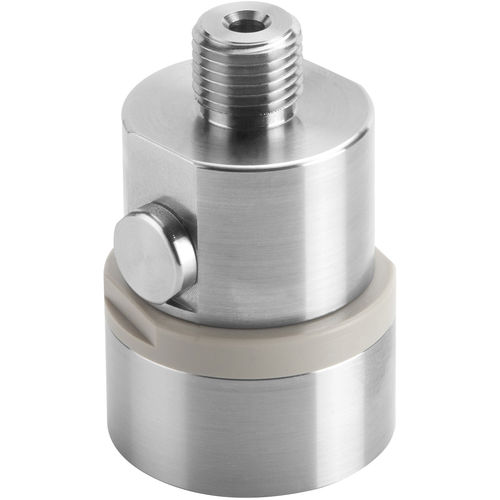

PressureDisk 05 is a pressure data logger from 0 to 5 bar, managed with Windows software and USB interface (DiskInterface HS, Multibay). Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable cetificate on different points. The other version of the data logger are: There are also other models of high temperature data loggers, for temperature only and humidity too. Main features Completely food grade and waterproof 1/2 Gass threaded connector to be screwed outside autoclave (the logger can still be used inside the autoclave though) TS Manager software calculates lethality value (F0, PU, A0 ecc.) Low battery consumption for an extended battery life User replaceable battery (software shows battery status) Accredia (NIST equivalent) traceable calibration certificate included Plus Extremely high accuracy and precision: these devices can be employed in any application involving pharmaceuticals, validation, laboratory and medical field Printed reports compliant with health regulations and ISO (data are not editable in the software) The system The system is made up by: PressureDisk temperature data logger DiskInterface HS or Universal Multibay HumiPressureDisk software or TS Manager software (compatible with the FDA 21 CFR Part 11 regulation) Pressure range - 0 bar ÷ 5 bar absolute Standard calibration points (pressure) - 50/1k/2k/3k/4k absolute mbar Extra calibration points (pressure) - Within the range 50 mbar ÷ 5 bar absolute Pressure resolution - 1 mbar Pressure accuracy - ± 15 mbar
