Temperature monitoring system Gea

humiditylaboratoryfor the pharmaceutical industry

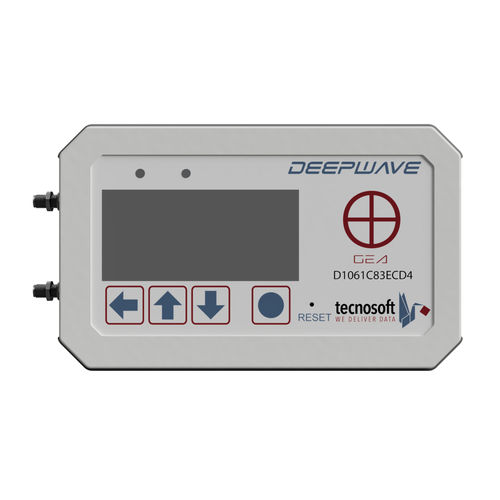

Gea is the flagship radio module of the DeepWave system: it has a large ePaper display (like the one from ebooks), 2 inputs for Smart Sensor chosen from those available (temperature, humidity, differential pressure, light), local acoustic alarms via buzzer. The Smart Sensors (not included) are supplied with an Accredia traceable calibration certificate and allow easy, economic and quick recalibration of the system, without the intervention of external technicians. The DeepWave system is based on the Lo.Ra radio protocol (Long Range) which allows transmission over very long distances and generally to have only one Helios receiver to cover all sensors. Batteries are easily replaceable by the user. Main features Lora Wan radio module for long distances transmission (up to 3 km in open field) Supports up to two Smart Sensors of temperature, humidity, differential pressure, light 2.9" ePaper display 4-buttons for screen control User replaceable batteries Certificate traceable to a national standard included with the Smart Sensors Plus Easy to install and configure Quick recalibration with the Smart Sensors Covers long transmission distances Clear and functional display Local alarm for immediate intervention Validatable DeepWave LoRa system in pharmaceutical and healthcare environment The system DeepWave is a temperature, humidity, differential pressure system made up by: DeepWave radio modules (LoRa nodes) Helios receiver (LoRa gateway) TSLog 21 software Dimensions - 151.6 X 88 x 33 (mm) (with connectors) / 146.6 X 88 X 33 (mm) (without connectors) Weight - 280 g Materials - ABS, Rubber Sensors - 2 X Smart Sensor inputs
