Temperature monitoring system Mercury

humiditylaboratoryfor the pharmaceutical industry

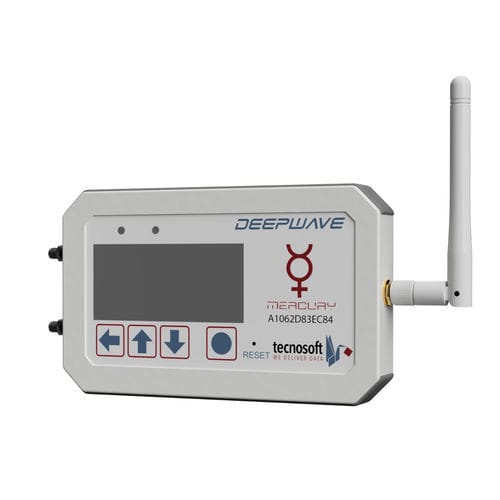

Mercury radio module of the LoRa DeepWave system: large ePaper screen (same as the one of ebooks), 2 connectors for Smart Sensor chosen from those available (temperature, humidity, differential pressure, light), local sound alarms via buzzer. The Smart Sensors (not included) are supplied with an ISO calibration certificate and allow fast, economic and easy recalibration of the whole system, without external intervention. Mercury mounts an external antenna also. DeepWave solution is based on the Lo.Ra. (Long Range) radio protocol which allows transmission over very long distance and requires only one Helios receiver to cover all nodes. Batteries are easily replaceable by the user. Main features Lora radio module for long distances transmission (up to 3 km in open field) Supports up to two Smart Sensors of temperature, humidity, differential pressure, light 2.9" wide ePaper display External antenna included 4-buttons for screen control User replaceable batteries Certificate traceable to a national standard included with the Smart Sensors Plus Easy to install and configure Quick recalibration with the Smart Sensors With the external antenna you increase the transmission by 50% Wide and low energy display Local alarm for immediate intervention Covers long transmission distances Validatable DeepWave LoRa system in pharmaceutical and healthcare environment The system Temperature, humidity, differential pressure DeepWave system made up by: DeepWave radio modules (Lo.Ra. nodes) Helios receiver (Lo.Ra. gateway) TSLog 21 software Dimensions - 159.6 X 88 x 33 (mm) (with connectors) / 146.6 X 88 X 33 (mm) (without connectors) Weight - 280 g Materials - ABS,
