Temperature monitoring system Jupiter

humiditylaboratoryfor the pharmaceutical industry

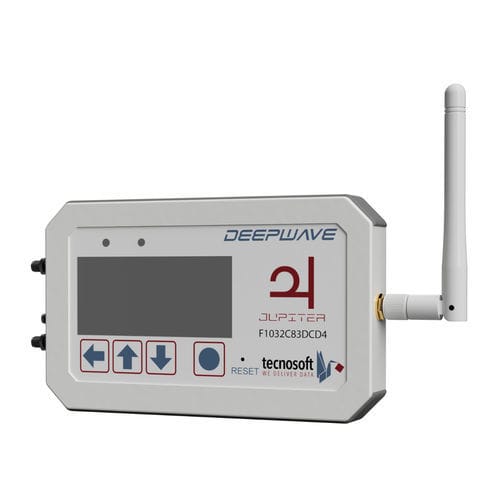

Radio module for the LoRa DeepWave system: ePaper wide screen (like the one of ebooks), 2 inputs for Smart Sensor chosen from those available (temperature, humidity, differential pressure, light), local acoustic alarms through a buzzer. The Smart Sensors (not included) are supplied with an reference traceable calibration certificate and allow fast, economic and easy recalibration of the whole system, without external intervention. Jupiter mounts external antenna and external power also (batteries are used as a backup). DeepWave solution is based on the Lo.Ra. (Long Range) radio protocol which allows transmission over very long distance and requires only one Helios receiver to cover all nodes. Batteries are easily replaceable by the user. Main features Lora radio module for long distances transmission (up to 3 km in open field) Supports up to two Smart Sensors of temperature, humidity, differential pressure, light 2.9" wide ePaper display External power connector (power adapter not included) External antenna included 4-buttons for display screen scrolling User replaceable batteries Certificate traceable to a national standard included with the Smart Sensors Plus Easy to install and configure Quick recalibration with the Smart Sensors With the external antenna you increase the transmission by 50% Wide and low energy display Local alarm for immediate intervention Thanks to the external power you forget to change the batteries Covers long transmission distances The system Lora Wan DeepWave system is made up by: DeepWave radio modules (LoRa nodes) Helios receiver (LoRa gateway) Dimensions - 159.6 X 88 x 33 (mm) (with connectors) / 146.6 X 88 X 33 (mm)
