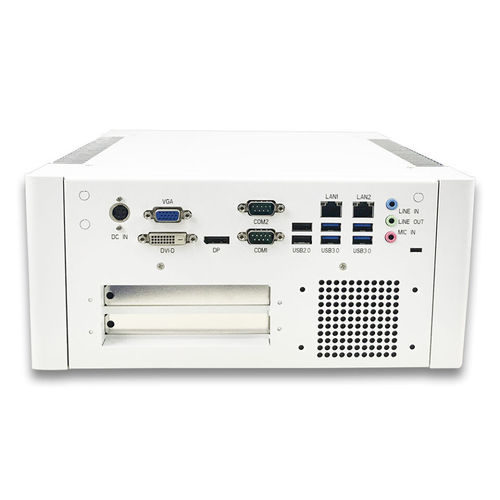

AI-ready medical box PC TMB-5710

Intel® Core i5Intel® Core i7for computer carts

The TMB-5710 Medical Edge AI Box PC is medically certified hardware designed for AI, edge computing, or other processor-intensive tasks. This medical box pc features two expansion slots for things like AI Cores or graphic cards, as well as a customized PCIe x16 expansion module featuring additional COM and LAN inputs. The Medical Edge AI Box PC has an Intel 9th Gen. Coffee Lake-S CPU and an easily removable HDD to assist with HIPAA patient data storage protocols. Key Highlights PCIe 16x extension includes extra LAN and COM ports Easily removable HDD Medically certified anti-microbial surface Flat surfaces make sanitation easy Product Features The TMB-5710 Medical Edge AI Box PC combines an high performance AI-ready CPU and a PCIe x16 multi-bay extension with extra COM and LAN ports into a compact form factor suitable for usage on mobile surgical carts, operating rooms, or other healthcare facility applications that require fast processing in a small space for AI or medical edge computing. Primary Components Memory Type 2x DDR4 SO-DIMM Memory Support 32GB Storage type 1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 SATA3 2280 Slot External I/O ports USB - 2x USB 2.0, 4x USB 3.0 Serial / Com 2x COM Serial Protocol Detail - 2 x RS232/RS422/RS485 (RI/5V/12V) Ethernet / LAN 2x RJ45 GbE LAN Video Outputs 1x DisplayPort 1.2, 1x DVI-D, 1x VGA Audio 1x 3.5mm Audio Line-Out, 1x 3.5mm Audio Line-In, 1x 3.5mm Microphone Jack Power Input Port 4-Pin DC-In Jack
