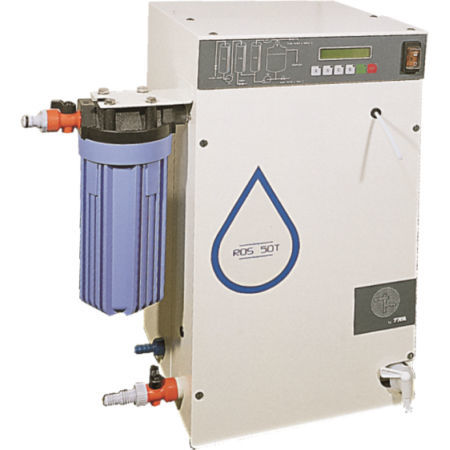

Laboratory water purification system ROS50T

reverse osmosisdeionizationUV

Reverse Osmosis system for the production of 50 liters/day of type II reagent grade ultrapure water directly from the tap. The system is equipped with a twin meter for the monitoring of the feed and the final water conductivity. The unit can be directly connected to a drinkable water supply with normal inlet pressure (from 2.5 to 5 bar). The frame is completely in baked enameled stainless steel. The ultrapure water can be collected directly from the proper outlet or by switching on the recirculation pump that collects water from the built-in 20 liters tank filtering it through a deionization cartridge. Water purification follows four purification steps: • carbon cartridge • reversal osmosis membrane • double wave length (185/255 nm) UV lamp (optional) • a-pyrogenic bacterial filter Feedwater Directly plumbing to a normal potable supply, 5-25°C, with a pressure within 3-5 bar Directly plumbing to a normal potable supply, 5-25°C, with a pressure > 1 bar Inlet water motoring - Yes Outlet water monitoring - Yes Pirogens filtration - Yes Options UV Lamp TOC monitoring and UV lamp Storage Reservoir 20 Liters 60 Liters
