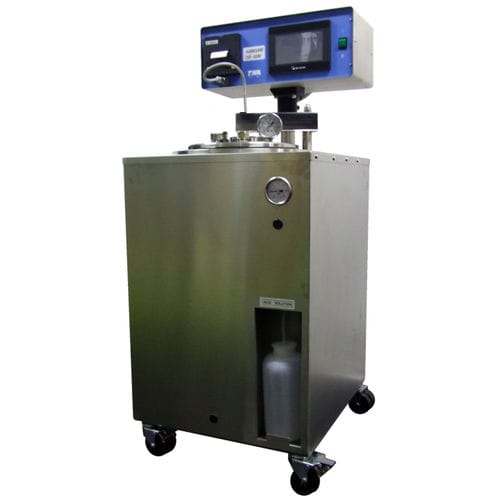

Automatic media preparation system Agarclave series

for culture mediasterilizationmixing

TKA's media preparators are equipped with two temperature probes: one for the working vessel and one for the jacket. A double propellers shaking unit magnetically coupled allows to mix carefully the media and to avoid any possible leakage. A spécial device, TKA projected, keeps uniform the temperature into the external jacket through the continuous water re-circulation pump. The working cycle, completely automatic, is controlled by microcontroller. The sterilization chamber, the mixing system and the lid are AISI316L stainless steel made, while the chassy is fully AISI304 stainless steel made. The autoclaves provide the possibility to pre-define up to 100 différent working cycles, with preview of the temperature graph and possibility to comment the recipe. Touch screen display and intuitive user interface. Each autocleave is equipped with multiple and completely independent safety devices. A recorder-printer is installed, allowing the registration of the working cycle. Ail the cycle related information are printed: start and end time, temperatures, phases, possible cycle interruptions. Water load/unload - Completely automatic Sterilization temperature - Programmable from 90 °C to 121 °C Sterilization time - Programmable from 1 to 200 minutes additives add - Programmable after sterilizazion phase (two phases ca be programmed) Delivery température - Programmable from 40 °C to 80 °C Culture media shaking - Magnetically driven shaking propellers with tunable speed Temperature probes - One in the steam generator and one in the sterilization chamber Sterilization programs - up to 100 specifie, completely automated sterilization programs
